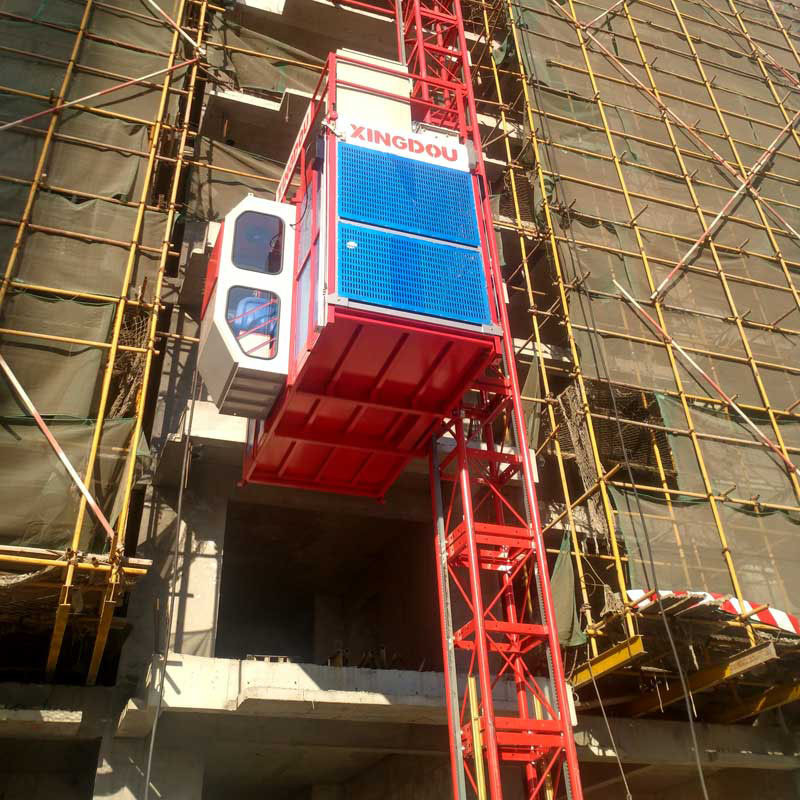

Construction hoists, also known as construction elevators, are indispensable for vertical transportation of materials and personnel on high-rise construction sites. Understanding their key components ensures optimal performance, safety, and longevity. Below, we break down the primary construction hoist components and their roles.

1. Mast Sections

The mast, or tower, forms the vertical framework of the construction hoist. Made of galvanized steel, mast sections are modular and bolted together to reach desired heights. Their rigidity ensures stability, even in harsh weather conditions.

2. Cage or Platform

The cage (for personnel) or platform (for materials) is the load-bearing unit. It includes:

• Safety gates to prevent falls
• Non-slip flooring for worker safety
• Overload sensors to monitor capacity

3. Drive System

The drive system powers the hoist’s movement. Common types include:

• Electric motors: Energy-efficient and quiet
• Hydraulic systems: Ideal for heavy loads
• Gearboxes: Ensure smooth acceleration/deceleration

3.1 Counterweights

Counterweights balance the cage/platform, reducing motor strain and energy consumption. Proper calibration is critical for safety.

4. Safety Components

Safety is paramount in construction hoist design. Key features include:

• Emergency brakes
• Limit switches to prevent over-travel
• Fall arrest systems

5. Control System

Modern hoists use PLC-based controls for precision. Operators can monitor speed, load, and diagnostics via touchscreen panels.

Conclusion

Understanding these construction hoist components helps in selecting, maintaining, and operating hoists efficiently. Regular inspections and adherence to safety standards ensure reliable performance on construction sites.
