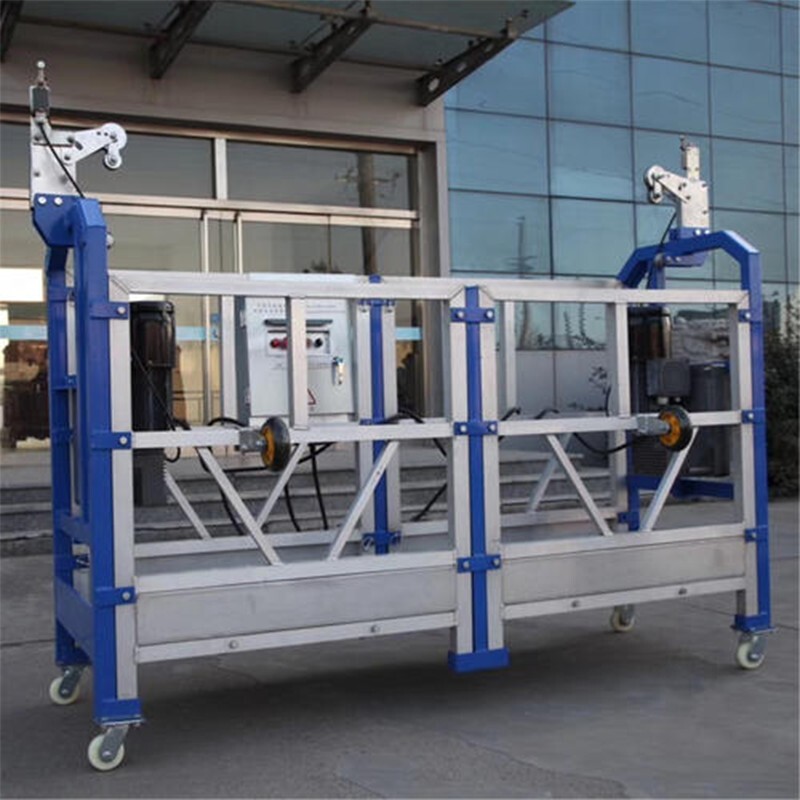

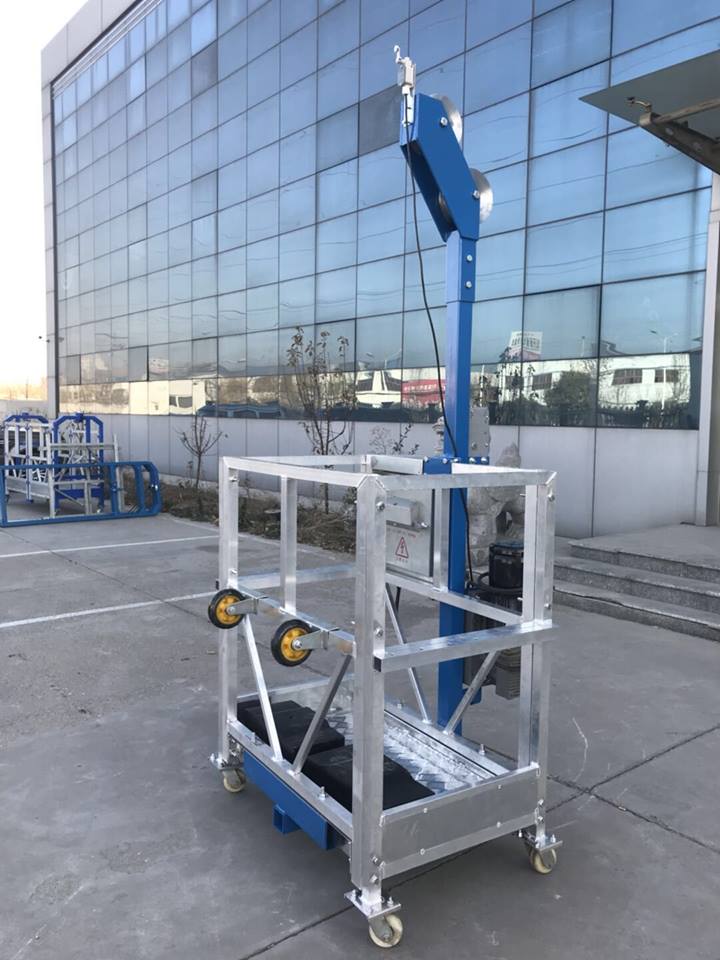

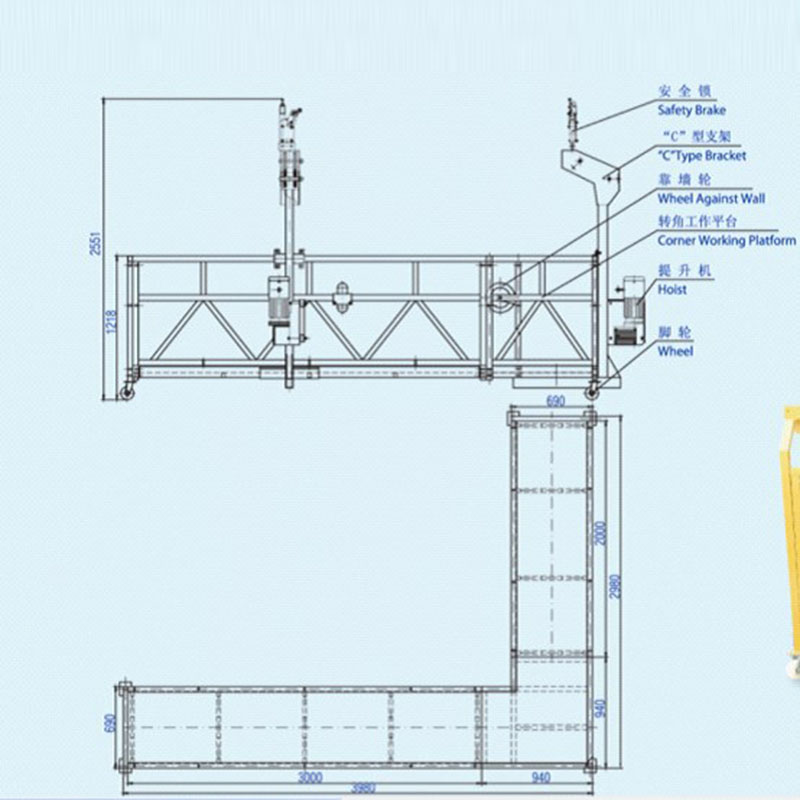

Special-Shaped Suspended Platform

Special-Shaped Suspended Platform

PRODUCT CATEGORY: Suspend Platform

Rated Load : 800kg

Platform size: 7.5 x 0.69 x 1.12m

Lifting Speed : 8.6m/min

Motor Power: 2x1.8kw


PRODUCT DESCRIPTION

ZLP series Suspended platforms is a new type of high-altitude work equipment that can replace traditional scaffolding, Platform operation is simple and flexible, easy to move, convenient and practical, safe and reliable, and can be used without scaffolding, greatly reducing construction costs.


They are widely used for exterior construction, decoration, cleaning And maintenance of high rise building, a substitute of Traditional scaffold, and ideal machine, the welding of seagoing ship in shipbuilding industry, cleaning of oil-based paint, installation of elevator, big-size tanks and high chimneys, and inspection cleaning and repair of bridge.

Our advantages: More reliable electric control solution, Diversified anti-corrosion technology and Customized service.


Parameters

ModelZLP500ZLP630ZLP800ZLP1000
Material 材质Steel Power Painting丨Hot Galvanized丨Aluminum Alloy
Rated Load 额定载重500kg630kg800kg1000kg
Platform Size 平台尺寸5x 0.69 x 1.12m6x 0.69 x 1.12m7.5 x 0.69 x 1.12m7.5 x 0.69 x 1.12m
Suspension Mechanism 悬挂类型Adjustable Suspension Mechanism丨Parapet clamp system
Suspension Adjust distance 悬挂调节距离A:1.3-1.7m丨R:0.6-1.2m
Lifting Speed 提升速度9.3m/min9.3m/min8.6m/min8.6m/min
Motor Power 电机功率2x1.5kw2x1.5kw2x1.8kw2x2.2kw
Hoist 提升机型号LTD6.3LTD6.3LTD8.0LTD10
Dia of Wire Rope 钢丝绳直径8.3mm8.3mm8.6mm9.1mm
Counter Weight 配重块800KG1000KG1000KG1300KG
Safety Lock 安全锁LDF30
Cable 电缆4*1.5mm+1*1.0mm4*1.5mm+1*1.1.0mm3*2.0mm+2*1.5mm3*2.5mm+2*1.5mm
Lifting Height 提升高度100m
Power Source电源220v丨380v丨440v, 50~60Hz, 3Phase丨Single phase
Safety Devices:Emergency stop device, Speed limit protection, Broken rope anti-tilt protection, Upper limit protection, the manual release device.
安全装置:急停装置、限速保护、断绳防倾斜保护、上限位保护、手动释放。
