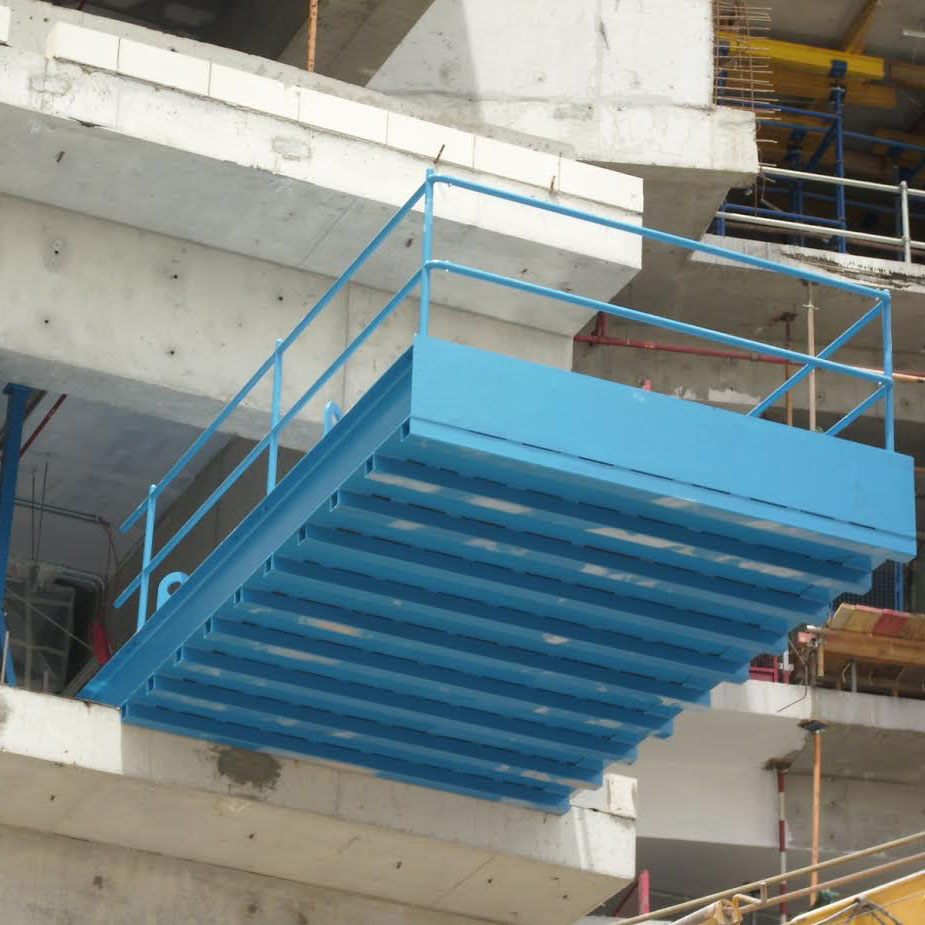

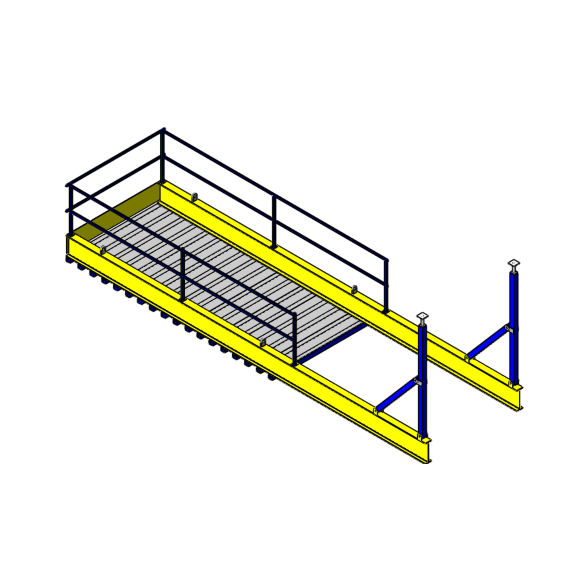

Loading Platform Light Duty

Loading Platform Light Duty

PRODUCT CATEGORY: Retractable Loading Platform

Max uniform load:3000kg

Outer width wl:2180mm-4180mm

Inner width w2:1650mm-3630mm

Height of installation space:2400mm-3800mm

Assembly Length:5500mm

Assembly height:400mm-500mm

Self weight:2t-3.2t


PRODUCT DESCRIPTION

In the material transportation of construction projects, lightweight unloading platforms with lightweight and flexible design and diversified adaptability have become the key link between lifting equipment and the working surface. Its modular structure and safety protection system accurately solves the material transfer problems in high-rise buildings, bridge projects and municipal construction, and builds an efficient and safe material flow hub for the construction site.


Lightweight design, releasing space potential

Adopting high-strength lightweight materials to build the frame, the platform's self-weight is significantly lower than that of traditional unloading equipment, and it can be easily transferred to each floor through the construction elevator. The adjustable width design is suitable for narrow corridors, balconies and other complex spaces, especially suitable for the renovation of existing buildings in urban renewal projects, avoiding additional loads on the building structure.

Anti-slip surface and anti-collision edge design reduces the weight and ensures the safety of material transportation at the same time.


Multi-protection, guarding operational safety

Full enclosure guardrail with skirting board design effectively prevents materials from falling; intelligent load monitoring system warns abnormal load in real time and actively locks the operation to avoid the risk of overloading; leakage-proof design at the bottom of the platform intercepts small debris and reduces the potential risk of falling objects. For different climatic conditions, optional reinforcement components are available to ensure stable operation of the platform in harsh environments through scientific mechanical structural design.


Full Scene Adaptation, Customized Application Solutions

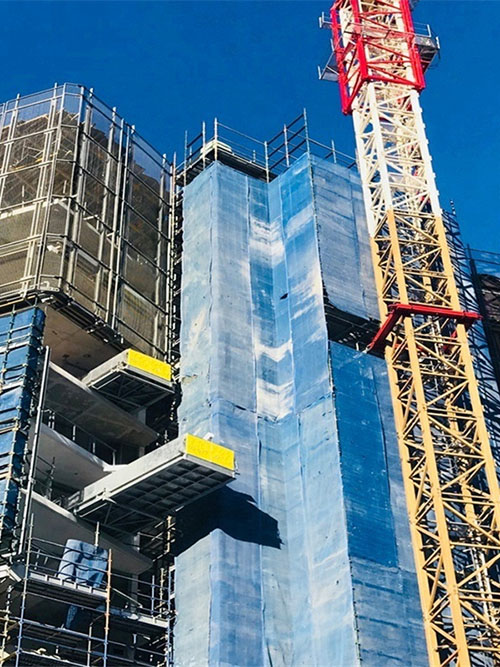

High-rise buildings: The external platform is firmly connected to the main structure through embedded parts, meeting the demand for short barging of materials at the standard floor, especially suitable for the efficient turnover of formwork in aluminum film construction.

Bridge engineering: the adjustable-angle suspended design is close to the overhead working surface, which is convenient for lifting components and storing tools in cover beams, box girders and other parts.


Municipal engineering: the vehicle-mounted mobile platform can be flexibly adapted to pipeline corridors, tunnels and other linear projects, quickly build temporary unloading points, and meet the demand for material transfer on multiple work surfaces.


Parameters

SpecificationsModel
XDLP 22XDLP 26XDLP32XDLP36XDLP42
Max uniform load(Kg)

30003000300030003000
Outer width W1(mm)

21802580318035804180
Inner width W2(mm)

16502050265030303630

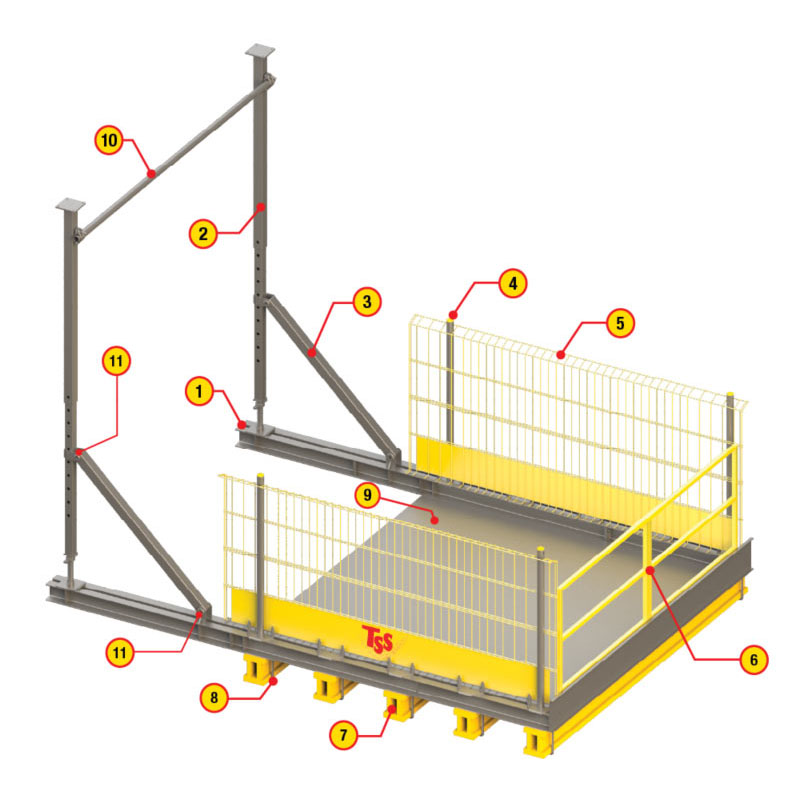

Distance of floor anchorage W3(mm)

21102510311034954095
Distance of prop W4(mm)

20302430303034054005
Height of installation space(mm)

2400-38002400-38002400-38002400-38002400-3800
Assembly Length(mm)

55005500550055005500
Assembly height(mm)

400400400500500
Self weight(t)

2.02.22.52.83.2
Surface treatment of Side panel

galvanized sheet and Painting
Surface treatment of the frame

Painting or galvanized
Applied
Force(KN)
Fixed with
prop
RA84.087.089.095.0102.0
RB60.061.063.068.073.0
RC6.56.57.27.68.0
Fixed with
floor anchorage
RA104.0107.0109.0115.0122.0
RB075.076.078.083.088.0
RC04.04.04.75.15.5
Applicable container

20‘GP40‘OT40‘OT40‘OTBulk cargoBulk cargo
Max Qty Of Package

41088//
*Outboard(mm)/Load ratio:4500/100%, 4750/80%, 5000/60%, 5250/50%.
