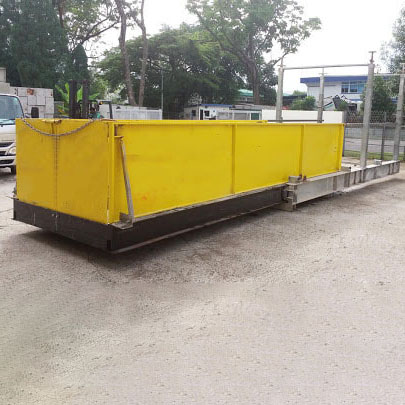

Heavy Duty Loading Platforms

Heavy Duty Loading Platforms

PRODUCT CATEGORY: Retractable Loading Platform

Max uniform load:3000kg

Outer width wl:2180mm-4180mm

Inner width w2:1650mm-3630mm

Height of installation space:2400mm-3800mm

Assembly Length:5500mm

Assembly height:400mm-500mm

Self weight:2t-3.2t


PRODUCT DESCRIPTION

In building construction, bridge engineering and heavy industrial scenarios, heavy-duty unloading platforms have become the core hub for vertical transportation of large materials with excellent carrying capacity and solid performance. Its strengthened structural design and intelligent safety system can accurately cope with complex working conditions such as heavy-duty material lifting and over-limit component transshipment, building a reliable material transfer platform for high-risk operating environments.


All-steel structure, building a solid foundation for heavy loads

The platform adopts high-strength steel to build an all-welded frame with thickened load-bearing panels and multiple reinforced support structures, which significantly improves the platform's deformation resistance. The modularized base design can be firmly connected with the embedded parts of the main structure, effectively dispersing the pressure of heavy loads, so that it can comfortably cope with the frequent loading and unloading of heavy materials such as precast concrete parts and large machinery parts, providing a solid and stable loading platform for aerial work.



Full-scene application, customized solution

Ultra-high-rise construction: The external heavy-duty platform is embedded in the core cylinder structure, supporting the short floor barging of tons of steel bundles, formwork sets and other bulk materials, and becoming a key transit node for steel structure erection and concrete pouring.


Bridge project: the suspended platform extends to the working surface of cover girders and box girders to meet the high-altitude accurate positioning and temporary storage of prefabricated girder segments, bearing assemblies and other large components.


Industrial plants: floor-standing heavy platforms are suitable for super-heavy equipment lifting, and seamlessly connect with ground transportation tools such as travelling crane and forklift, to build a full-process heavy-duty transportation system from the ground to the high altitude.


Parameters

SpecificationsModel
XDLP 22XDLP 26XDLP32XDLP36XDLP42
Max uniform load(Kg)

30003000300030003000
Outer width W1(mm)

21802580318035804180
Inner width W2(mm)

16502050265030303630
Distance of floor anchorage W3(mm)

21102510311034954095
Distance of prop W4(mm)

20302430303034054005
Height of installation space(mm)

2400-38002400-38002400-38002400-38002400-3800
Assembly Length(mm)

55005500550055005500
Assembly height(mm)

400400400500500
Self weight(t)

2.02.22.52.83.2
Surface treatment of Side panel

galvanized sheet and Painting
Surface treatment of the frame

Painting or galvanized
Applied
Force(KN)
Fixed with
prop
RA84.087.089.095.0102.0
RB60.061.063.068.073.0
RC6.56.57.27.68.0
Fixed with
floor anchorage
RA104.0107.0109.0115.0122.0
RB075.076.078.083.088.0
RC04.04.04.75.15.5
Applicable container

20‘GP40‘OT40‘OT40‘OTBulk cargoBulk cargo
Max Qty Of Package

41088//
*Outboard(mm)/Load ratio:4500/100%, 4750/80%, 5000/60%, 5250/50%.
