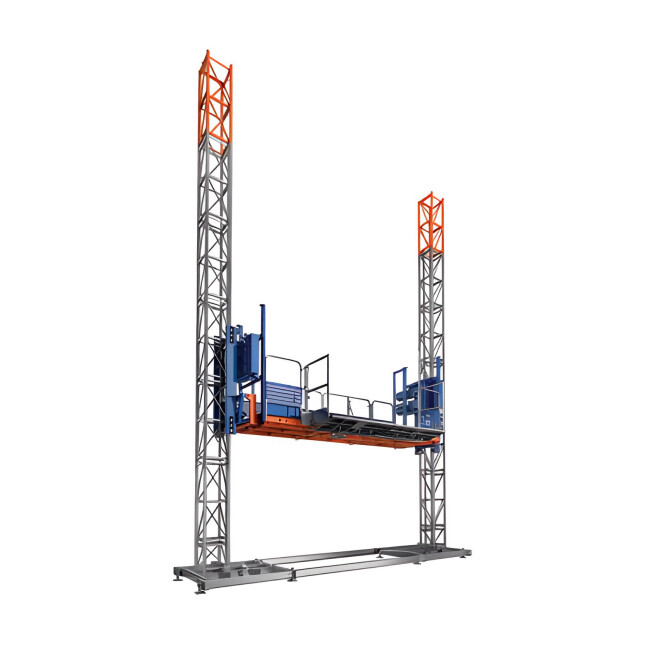

Twin-Mast

Twin-Mast

PRODUCT CATEGORY: Materials Lift/Hoist

Size: 3m(w)*5m(l)*1.2m(h)

Load: 3000kg-5000kg

speed: 24m/min

Max.install height: 150m


PRODUCT DESCRIPTION

The MC series material platform is a specialized equipment developed for the transportation of construction materials, factory storage and

handling, and other suitable places.

It can achieve smooth and safe transportation of personnel and

materials. The maximum lifting capacity of standard products can reach 5000kg, and special application places can be customized according to

customer needs. Outdoor use equipped with a movable ceiling can meet the requirements of rain protection and facilitate the lifting of bulk goods.


Parameter


Single-MastTwin-Mast
ModelMC S 50MC S 100MC S 200MC T 300MC T 500
Load(kg)5001000200030005000
speed(m/min)2424242424
Max.install height(m)150150150150150
Cage size(mm)width12001400150030003000
length15002200300050005000
height12001200120012001200
Motor Power(kw)2*42*7.52*9.24*116*11
Mast(mm)450*450450*450650*6502*650*6502*650*650
Standards and regulationsEN 16719:2017
Applicable temperatureMax. -40~+50℃
