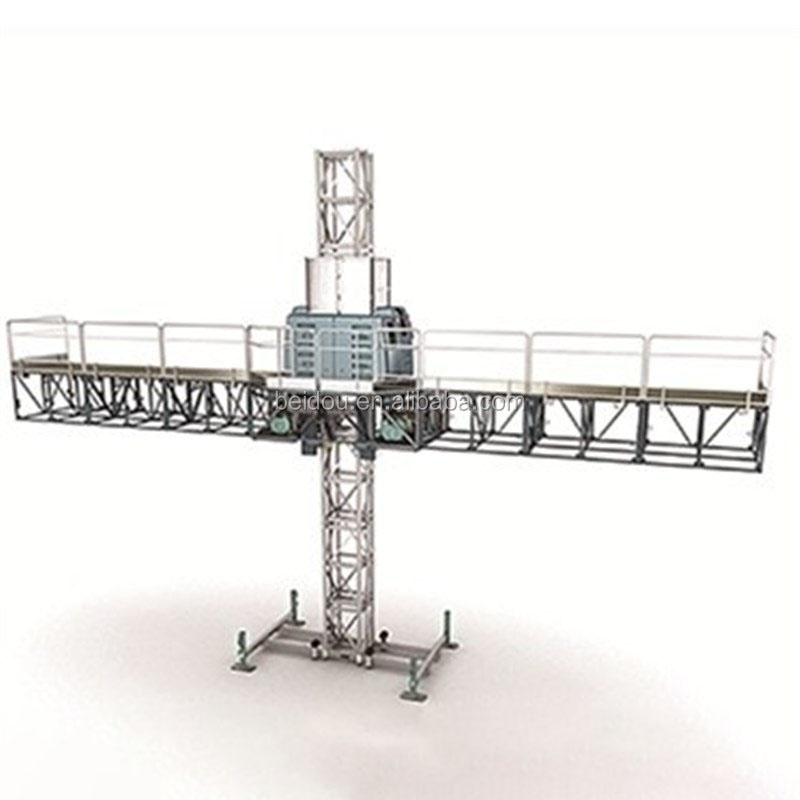

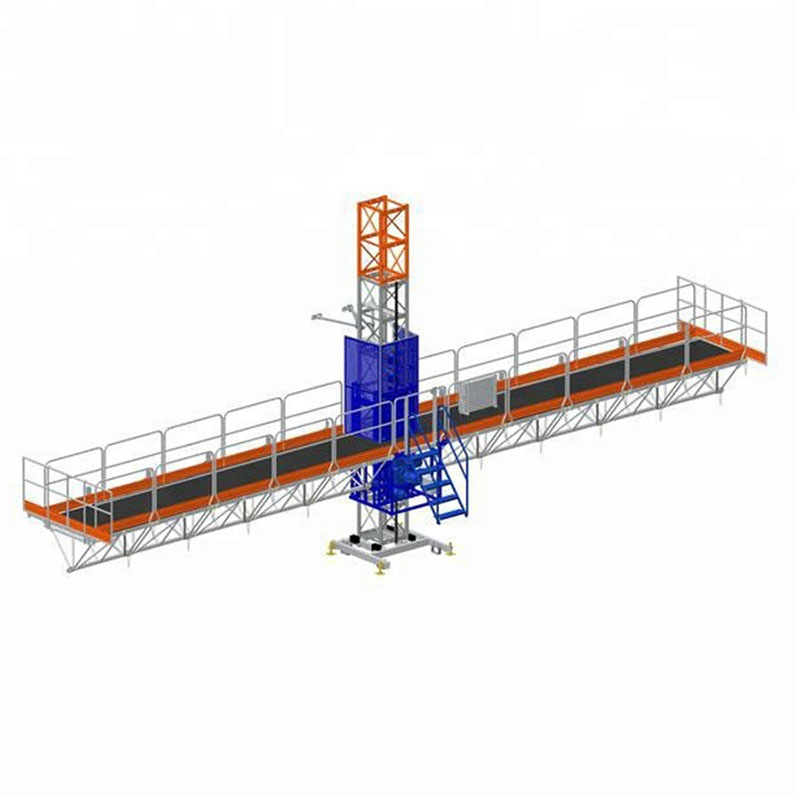

MC 450

PRODUCT CATEGORY: Mast Climbing Work Platform

Platformlength: 2.84(m)/10.2(m)

Platformwidth(standardwith extension): 1.2(m)/2.4(m)

Max.payload(at max/min.platformlength): 1500 (kg)/2000 (kg)

Speed(50/60Hz): 8(m/min)


CONTACT US
MESSAGE
PRODUCT DESCRIPTION

The MC 450 Mast Elevated Work Platform is capable of moving between structures at different heights and can be used to transport people, tools and materials to the work area, making it an efficient and ergonomic alternative to scaffolding for curtain walling of structures and making the work safer.The MC 450 Mast Elevated Work Platform improves the productivity of the construction site from the ground level to all floors, safety and economy. economy.


Parameter

型号SINGLE450单柱TWN450双柱
Platformlength (m)(min/max)平台长度284/10.26.22/30.22
Platformwidth(m)(standardwith extension)平台宽度1.2/2.41.2/2.4
Max.payload (kg)(at max/min.platformlength)载重1500/20002000/4000
Speed(m/min)(50/60Hz)提升速度88
Mast标准节450450
Rack module55
Motor rating drive unit(KW)功率1x4KW2x1x4KW
Tie distance附着间距4.5m-7.5m4.5m-7.5m
Overhang自由高度4.5m4.5m
Power supply电压380V/50-60Hz380V/50-60Hz
Max lifting height(m)最大起升高度200200
