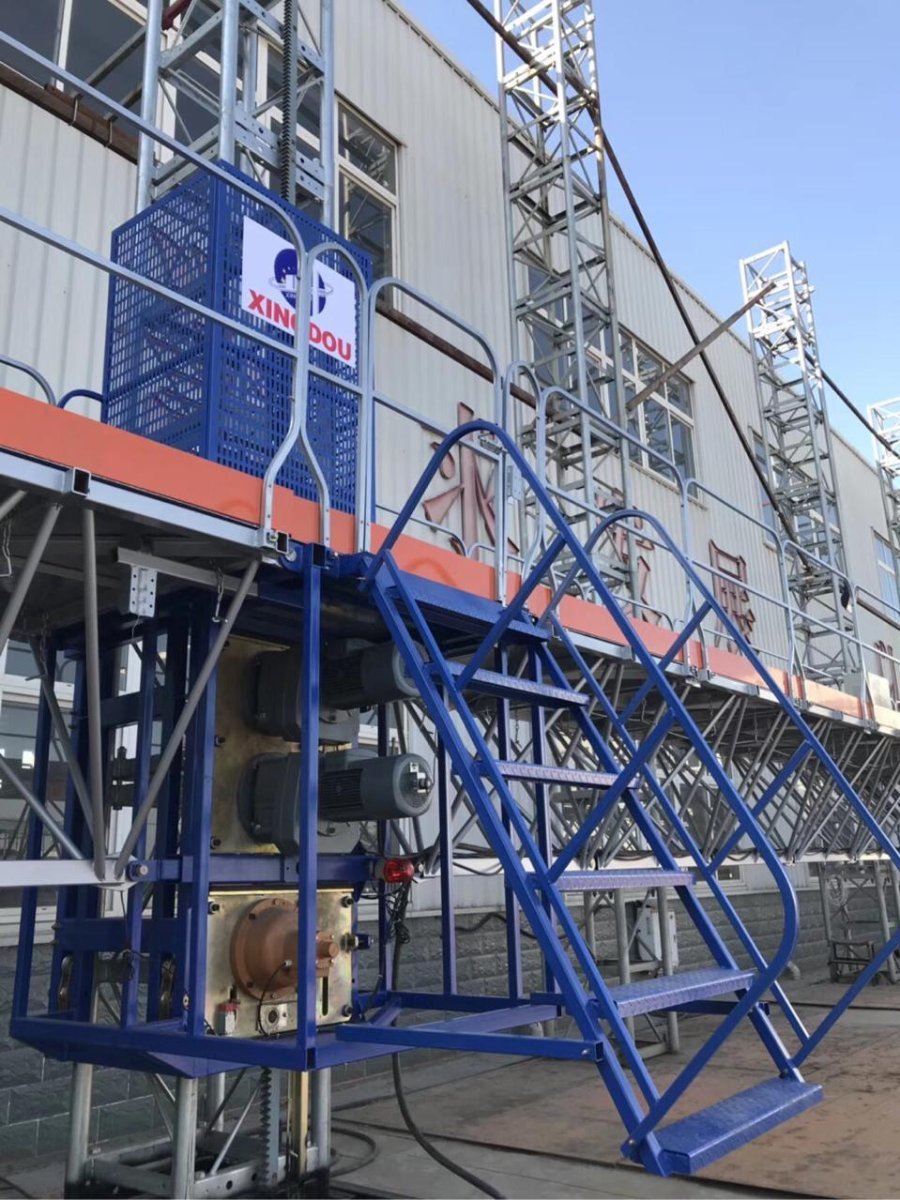

MC650

PRODUCT CATEGORY: Mast Climbing Work Platform

Platform length: 3.0 m~ 10.4m

Platform width: 1.5 m ~ 2.7m

Payload: 2,000 kg ~ 3,500kg

Speed(50/60 Hz): 8/9.6 m/min

Max lifting height (attached): 200m


PRODUCT DESCRIPTION

MC 650 is the next generation of strong, robust and quality mast climbers supplied by XINGDOU. This new model offers the best ratio of performance and quality for global use in the heavy range of applications.


Depending on the type of machine these mast-climbers reach platform lengths up to 32.2m and maximum load capacities of 5,000kg. Therefore the Mast Climber MC 650 is one of the most powerful mast climbing platforms on the market. Stable galvanized tube masts ensure safe setup up to a maximum lifting height of 200m. Versatility is the surpassing strength of the Mast Climber MC 650. Extendible platform elements ensure a precise adjustment of themast climber to the facade in any situation when used on modern and extremely winding faces of buildings.


Parameter

Heavy Duty Range - MC 650 Technical Data

MC 650-SINGLEMC 650-TWIN
Platform length3.0 m~ 10.4 m10.3 m ~ 30.6 m
Platform width1.5 m ~ 2.7 m1.5 m ~ 2.7 m
Payload2,000 kg ~ 3,500 kg3,500 kg ~ 5000 kg
Speed(50/60 Hz)8/9.6 m/min8/9.6 m/min
Max lifting height (attached)200 m200 m
Max freestanding height9 m9 m
Overhang4.5 m4.5 m
Tie distance4.5 m ~ 7.5 m4.5 m ~ 7.5 m
Cable guide distance6 m6 m
Mast650(0.65*0.65*1.508m)650(0.65*0.65*1.508m)
Rack module88
Motor rating drive unit2 x 4 kW2 x 2 x 4 kW
Power supply380V / 50Hz380V / 50Hz
* Increased lifting height on request.
** Other power on request.
