M650

M650

PRODUCT CATEGORY: Construction hoist

SIZE: 1.5 m (W) x2.8-5.0 m(L)

CAPACITY: 1,500-3,500 kg

SPEED: 38-100 m/min

Mast optional: 650(mm) x 650(mm) x1508(mm)

PRODUCT DESCRIPTION

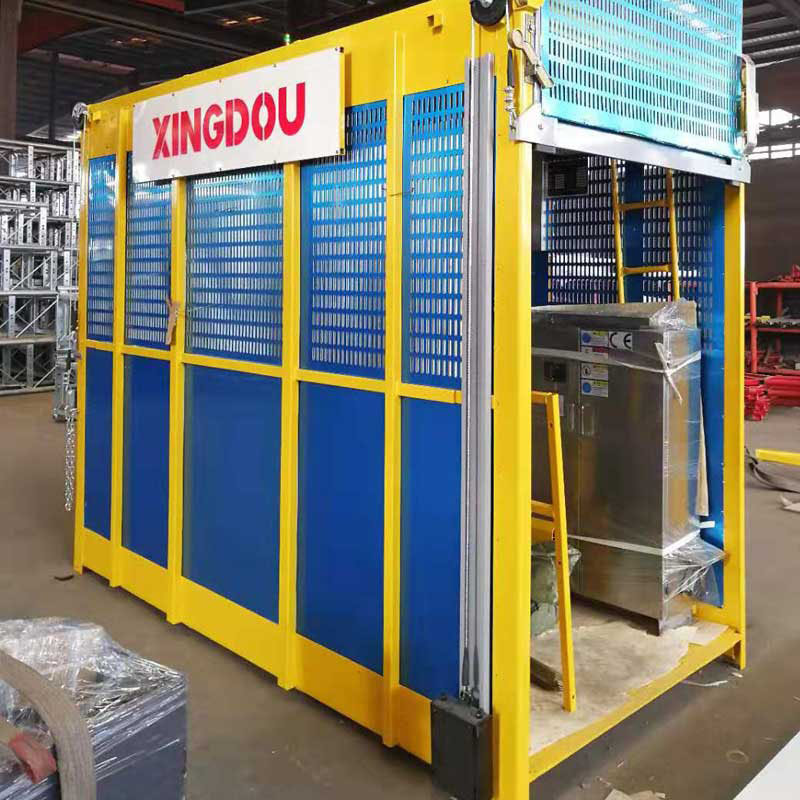

M650 passenger and cargo construction hoist is the most used, popular and widely applied model in the market.M650 has won wide recognition in the market for its high efficiency, flexibility and safety, and has high user satisfaction and reputation in the field of construction hoist. The product not only meets the needs of different construction scenarios, but also reduces labor costs and maintenance difficulties, and improves construction efficiency and quality. Therefore, M650 is the best choice for customers who need construction hoist.


Product Features and Advantages

Efficiency:

The lift features high-speed operation with a maximum operating speed of 100 meters per minute, which saves power by 40% compared to older models, thus improving construction efficiency and reducing energy consumption.


Flexibility:

 The M 650 is available in single and double car configurations to meet different construction needs. The car is equipped with a wide range of car lengths and door or boarding steps for users to choose from, making it easy to combine and apply flexibly.


Safety:

The elevator is equipped with advanced safety devices, such as overload protection control, floor call three-in-one intelligent operator console, etc., to ensure safety during the construction process. Meanwhile, the control system is equipped with fault diagnosis device and online remote monitoring system, which can collect and display all kinds of operation information in real time, so as to find and eliminate faults in time and reduce downtime.


Wide applicability:

The lift is suitable for a variety of building construction scenarios, including low-rise to ultra-high-rise building projects. The standard maximum lifting height is 500 meters, which can be increased according to customer requirements to meet the needs of different construction heights.


Easy maintenance: The control system and key components of the M650 are well-designed and easy to maintain.


Parameters

S/N Model Load Capacity
per cage(Kg)
MAX.Speed
(m/min)
MAX.Height
(m)
Drive Unit
(KW/Hz)
Safety
Device
EL Control
(KW)
Single Twin
1 SC100 SC100/100 1000 33 150 2*11/50 SAJ30-1.2 PLC DOL
※ 2 SC100L SC100/100L 36 250 2*11/60 SAJ30-1.2 30 VFD
3 SC100M SC100/100M 60 350 2*15-19/87 SAJ30-1.4 37 VFD
4 SC100H SC100/100H 75 450 2*23/87 SAJ40-2.0 55 VFD
5 SC100SH SC100/100SH 96 550 2*32/87 SAJ40-2.0 75 VFD
6 SC200 SC200/200 2000 33 150 3*11/50 SAJ40-1.2 PLC DOL
※ 7 SC200LA SC200/200LA 36 250 2*13/60 SAJ40-1.2 30 VFD
※ 8 SC200LB SC200/200LB 46 250 2*15/60 SAJ40-1.2 37 VFD
9 SC200MA SC200/200MA 54 250 2*19/87 SAJ40-1.4 45 VFD
※10 SC200MB SC200/200MB 63 250 2*23/87 SAJ40-1.4 55 VFD
※11 SC200MC SC200/200MC 63 350 3*15/60 SAJ40-1.4 55 VFD
12 SC200H SC200/200H 75 450 3*19-23/87 SAJ50-2.0 75-90 VFD
13 SC200SH SC200/200SH 96 550 3*26-32/87 SAJ50-2.0 90-110 VFD
14 SC300LA SC300/300LA 3000 36 250 3*11/60 SAJ50-1.2 37 VFD
※15 SC300LB SC300/300LB 46 250 3*15/60 SAJ50-1.2 55 VFD
16 SC300M SC300/300M 60 350 3*19-23/87 SAJ50-1.4 75-90 VFD
17 SC300H SC300/300H 75 450 3*26-32/87 SAJ50-2.0 90-110 VFD
 Remarks: The ones marked ※ are our recommended model, others can be customized according to the requirements .
