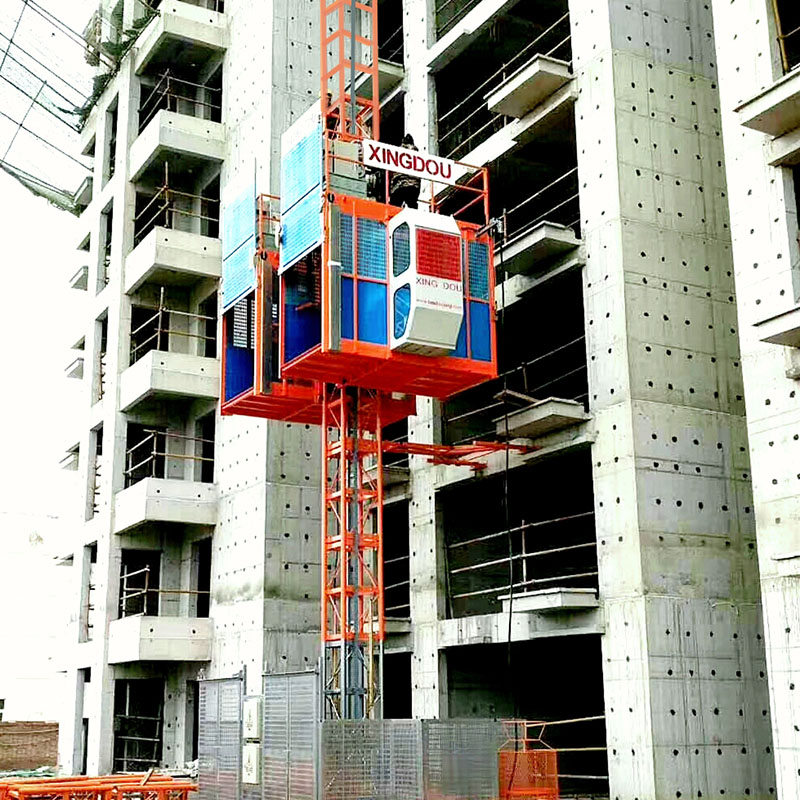

M200

M200

PRODUCT CATEGORY: Construction hoist

Load Capacity per cage: 2000(Kg)

MAX.Speed : 33(m/min)

MAX.Height: 150 (m)

Mast optional: 650(mm) x 200(mm)  x 1508(mm)


PRODUCT DESCRIPTION

M200 construction hoist is a kind of vertical transportation equipment specially used for construction in building shafts (such as elevator shafts, ventilation shafts, standard sections of large towers and other vertical passages). In order to enhance the utilization of space, the shaft construction hoist is designed for elevator shafts, which can make full use of resources to carry people and goods in the elevator shafts with narrow space. It is mainly used in the construction phase of high-rise or ultra-high-rise buildings to solve the vertical transportation problems of materials, equipment and personnel. With the features of high space utilization, strong safety and adaptability to complex environment, the shaft construction hoist has become an important equipment for the construction of modern high-rise buildings, which is especially suitable for the projects with limited space or high requirements for aesthetics.


Product features and advantages

Space-saving Directly installed in building shafts (such as elevator shafts, stairwells), without external brackets, especially suitable for construction sites with limited space (such as dense urban areas or narrow construction sites).


High safety Running in the closed shaft, less affected by wind and weather, better stability than external lifts. Equipped with multiple safety devices such as fall arrester, speed limiter, door interlock, etc., it meets the safety standards for working at height.


Efficient Vertical Transportation Fast lifting speed (usually 20-96m/min), which can reach the designated floor quickly and shorten the working period.


Strong loading capacity (usually 1-3 tons) to meet the needs of building materials (e.g. steel, concrete), tools and workers transportation. Strong adaptability Higher guideway can be connected with the growth of building height, which is suitable for the construction of ultra-high-rise buildings.


Economical Reduces the occupation of the facade and reduces the interference of the construction of the external enclosure structure. No need for complex external support structure, lower installation and dismantling costs.

Parameters

S/NModelLoad Capacity
per cage(Kg)
MAX.Speed
(m/min)
MAX.Height
(m)
Drive Unit
(KW/Hz)
Safety
Device
EL Control
(KW)
SingleTwin
1SC100SC100/1001000331502*11/50SAJ30-1.2PLC DOL
※ 2SC100LSC100/100L362502*11/60SAJ30-1.230 VFD
3SC100MSC100/100M603502*15-19/87SAJ30-1.437 VFD
4SC100HSC100/100H754502*23/87SAJ40-2.055 VFD
5SC100SHSC100/100SH965502*32/87SAJ40-2.075 VFD
6SC200SC200/2002000331503*11/50SAJ40-1.2PLC DOL
※ 7SC200LASC200/200LA362502*13/60SAJ40-1.230 VFD
※ 8SC200LBSC200/200LB462502*15/60SAJ40-1.237 VFD
9SC200MASC200/200MA542502*19/87SAJ40-1.445 VFD
※10SC200MBSC200/200MB632502*23/87SAJ40-1.455 VFD
※11SC200MCSC200/200MC633503*15/60SAJ40-1.455 VFD
12SC200HSC200/200H754503*19-23/87SAJ50-2.075-90 VFD
13SC200SHSC200/200SH965503*26-32/87SAJ50-2.090-110 VFD
14SC300LASC300/300LA3000362503*11/60SAJ50-1.237 VFD
※15SC300LBSC300/300LB462503*15/60SAJ50-1.255 VFD
16SC300MSC300/300M603503*19-23/87SAJ50-1.475-90 VFD
17SC300HSC300/300H754503*26-32/87SAJ50-2.090-110 VFD
 Remarks: The ones marked ※ are our recommended model, others can be customized according to the requirements .
