The Mast Climbing Work Platform (MCWP), as an efficient, safe, and flexible aerial work system, has been widely used in building exterior construction, maintenance, and restoration. It overcomes the drawbacks of traditional scaffolding, which is cumbersome to erect and difficult to maneuver, achieving high adaptability and stability through a modular design. To understand the source of its exceptional performance, we need to delve deeper into its core components.

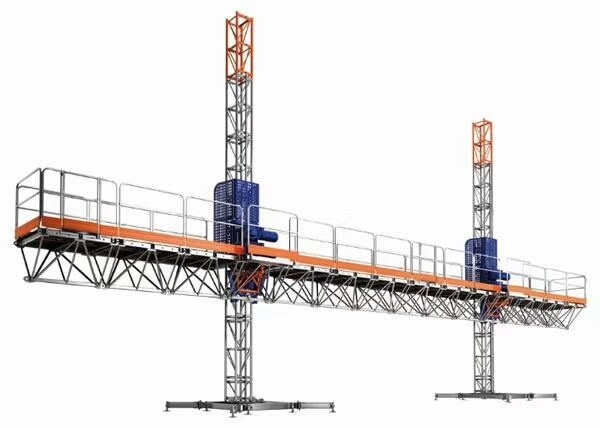

A complete Mast Climbing Work Platform consists of four core systems: the mast structure, the work platform, the drive and hoist system, and the wall attachment system.

1. Mast Structure: The "Spine" of the System

The mast is the vertical support framework of the entire system, hence its name. It is typically constructed from standard high-strength steel segments bolted together, and the number of segments can be flexibly increased or decreased to meet the building's height. The double-mast design is the most common, providing the platform with exceptional stability and load capacity. The mast not only bears the weight of the work platform and its entire load (including workers, tools, and materials), but also serves as the guide for the platform's ascent and descent, ensuring a straight and precise trajectory.

2. Work Platform: The Main "Stage"

The work platform is where workers actually perform their work. It also utilizes a modular design, assembled from several platform units, with adjustable length to accommodate varying work surface widths. The platform floor is typically constructed of non-slip steel plates, and adjustable guardrails are installed around the perimeter to ensure safe operation. Its large load-bearing area is a significant advantage over traditional scaffolding, allowing for the stacking of large quantities of construction materials and providing workers with a spacious, stable working space, greatly improving work efficiency.

3. Drive and Lift System: The "Muscles and Nerves" of the Platform

This is the core power unit that enables the platform's lifting and lowering functions. This system typically includes:

Drive Unit: Each mast is equipped with one or more electric or hydraulically driven motors. These motors mesh with the mast's rack via gears, providing smooth, powerful lifting and lowering power.

Control System: The operator controls the overall lifting and lowering of the platform from a control panel on the platform. An advanced control system ensures synchronized operation of multiple drive units, preventing platform tilt and guaranteeing an absolutely smooth and safe lifting process. In the event of a malfunction or power outage, a backup manual descent mechanism ensures the platform is safely lowered to the ground.

4. Wall Attachment System: A Stable "Anchor Point"

The wall attachment system is key to overall stability and safety. It comprises a series of wall mount brackets, adjustable tie rods, and anchors, firmly securing the mast structure to the building facade. These brackets are installed layer by layer as the working height increases, effectively transferring wind loads and other lateral forces to the building structure, preventing the mast from swaying or tipping over. The design and spacing of the wall mount points are meticulously calculated to ensure the highest safety standards are met at all heights.

In summary, the mast climbing work platform is a sophisticated integrated system. Its mast provides support as the backbone, the work platform provides the stage, the drive system provides the muscle, and the wall attachment system provides stability. These four components work in tandem to ensure safe, efficient, and economical performance for aerial work, making it an indispensable component of modern construction.
